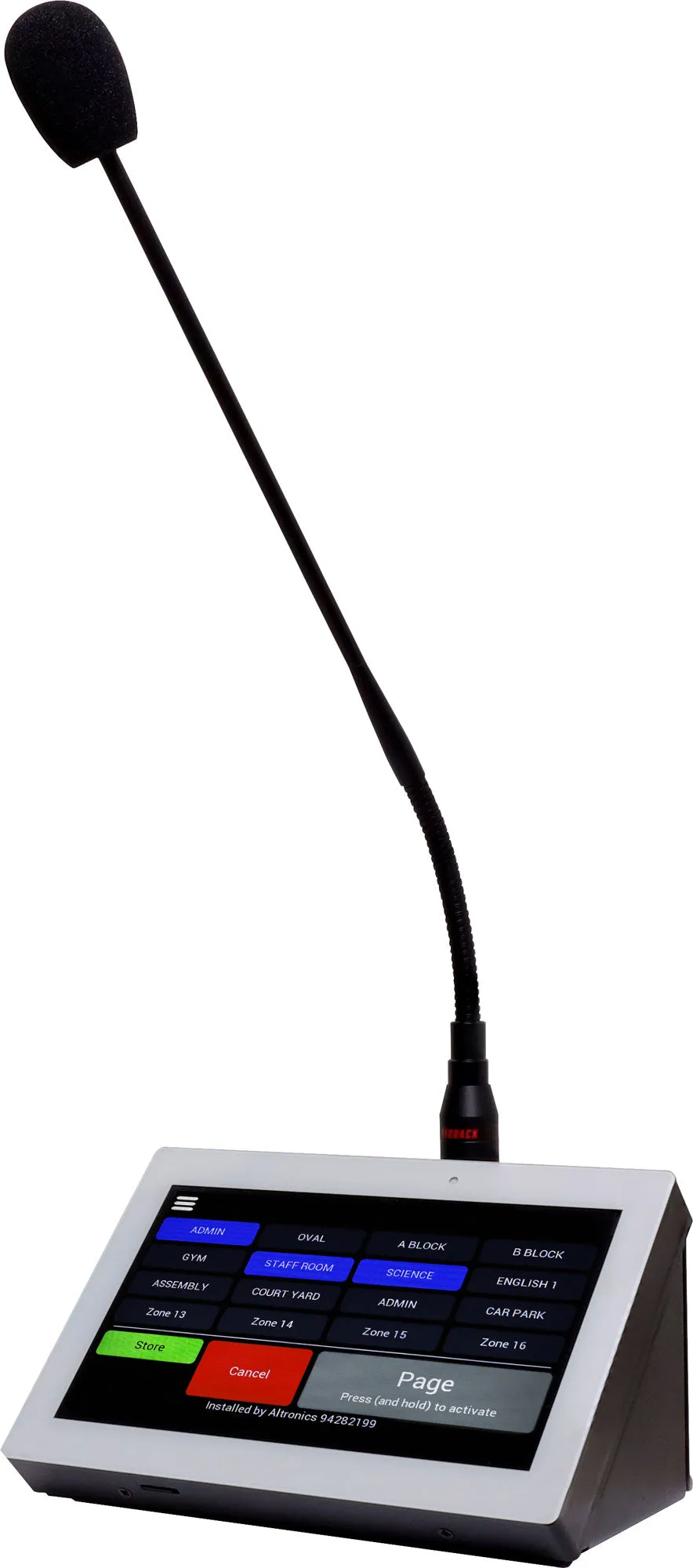

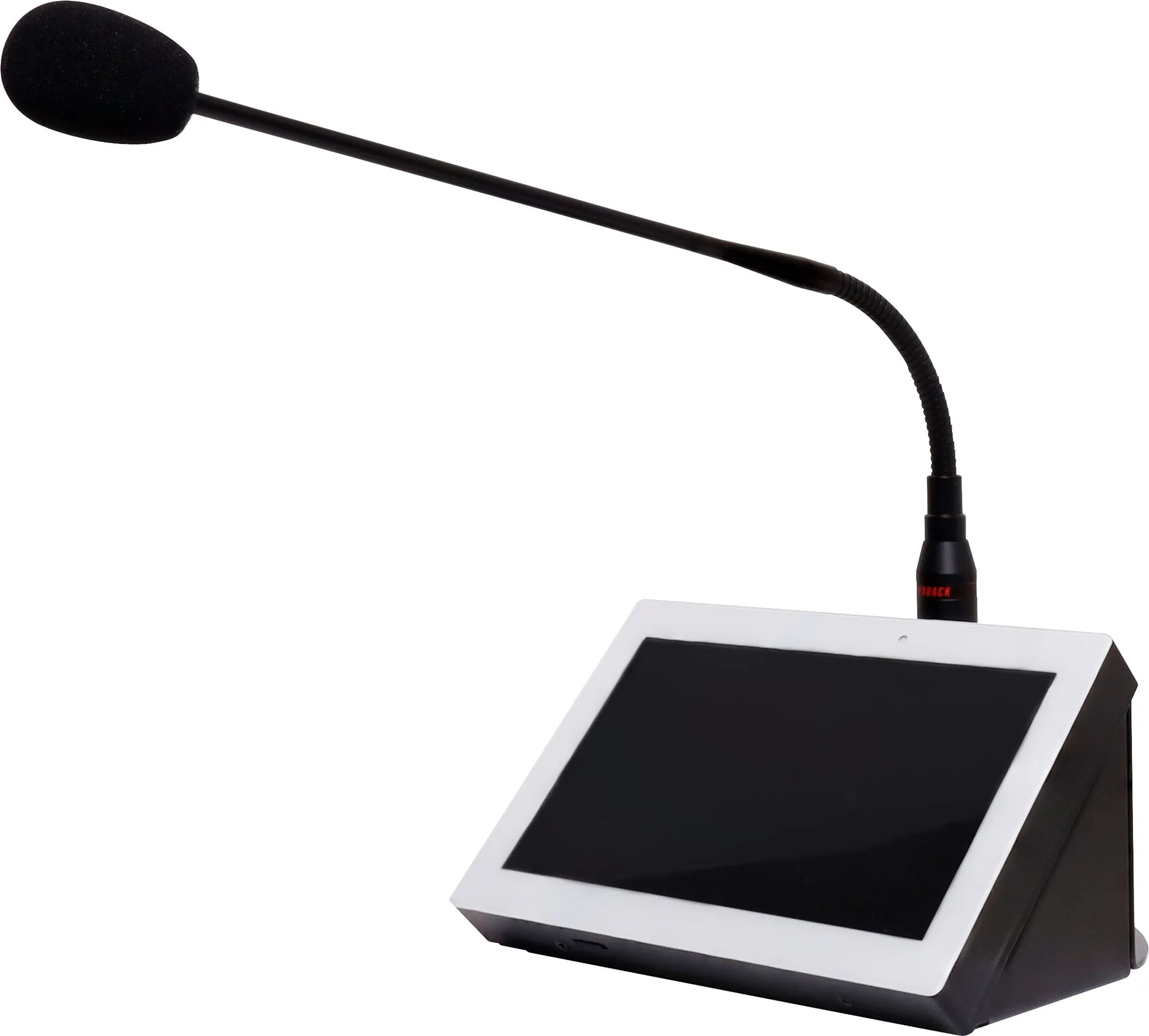

This 7" touchscreen LCD paging console provides paging control to a host of Redback products. No matter which product it is connected to, the console provides a central point of control for paging activation with useful features in-built such as pre and post announcement chimes, adjustable automatic microphone gain (AGC) control and output level control.

Plus on designated Redback products the settings menu allows for selection of button colour theme, zone labelling, input and installer renaming. It also allows you to adjust haptic button feedback, screen sleep settings, backlighting/dimming timers. To facilitate simpler paging, it offers the ability to record announcements, provide announcement playback, store and recall multizone selections.

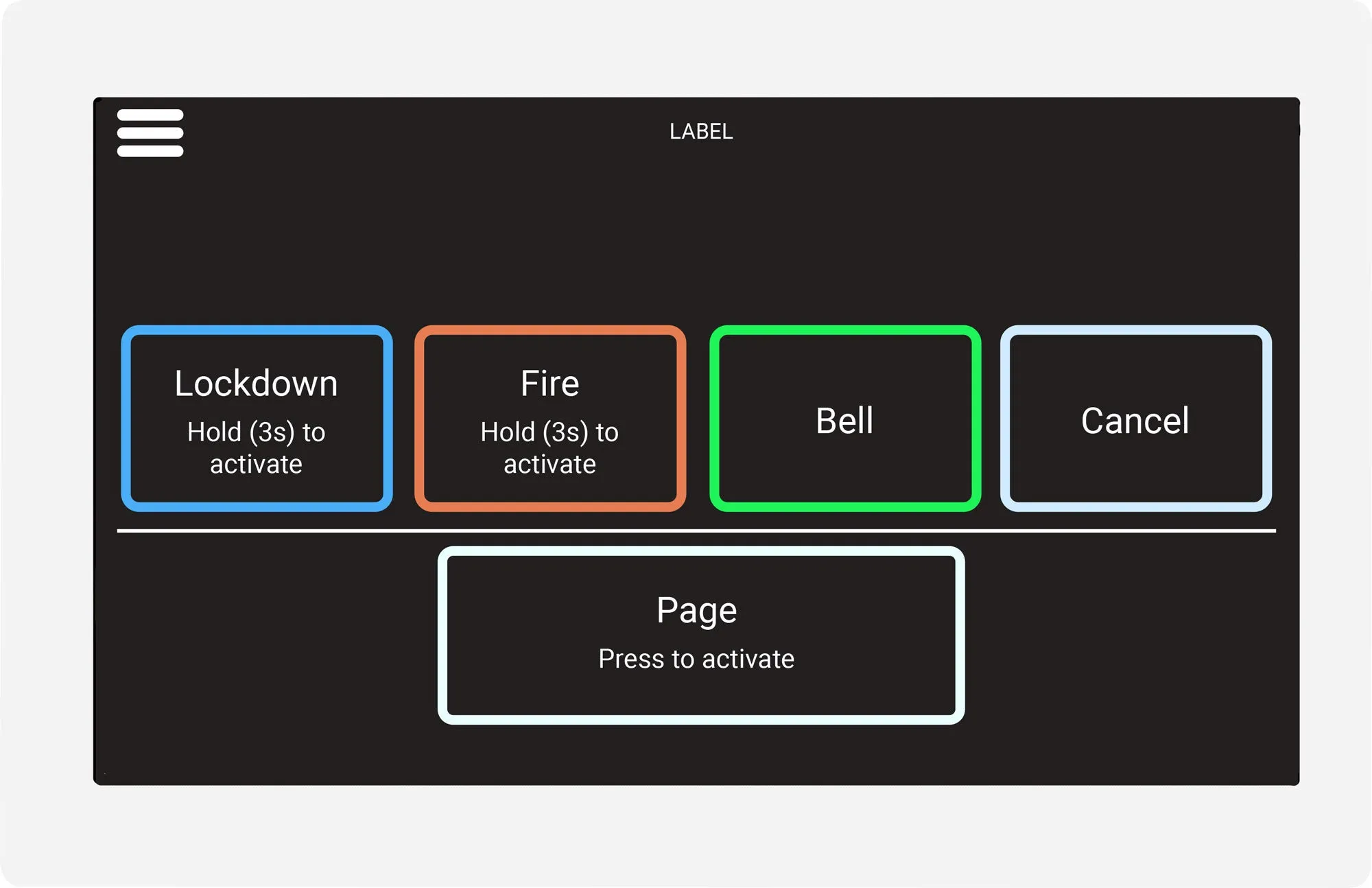

The features available on the console vary according to what Redback device it is connected to.

Standard Features:
Touch control paging with pre and post announcement chime options.
Adjustable microphone automatic gain control (AGC).
High quality electret microphone with high ambient noise control and feedback rejection.
Adjustable backlight brightness and dimmed brightness levels with selectable timeout period.
All glass front bezel for a stylish finish for any room.

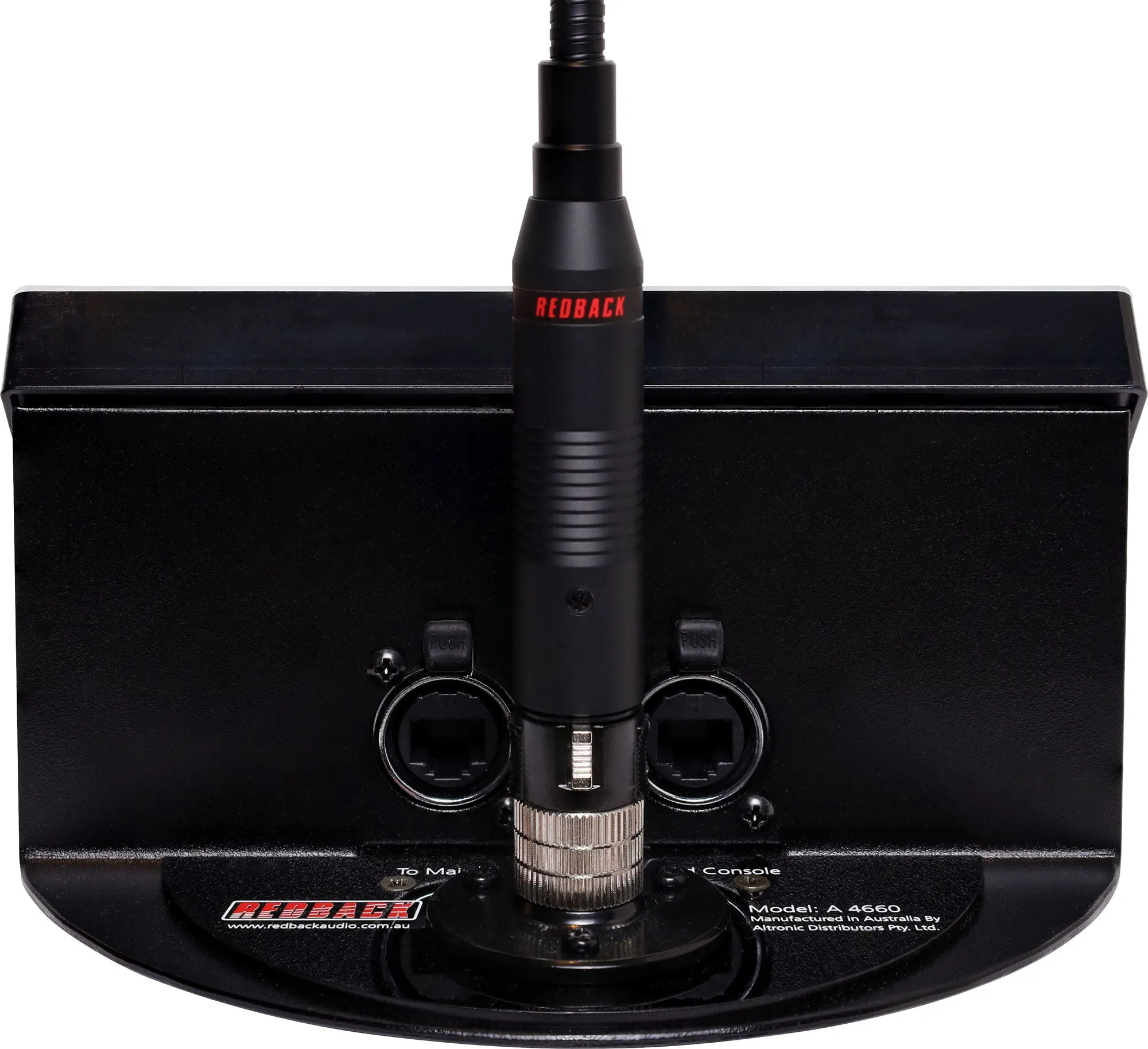

Connects via economical Cat5e UTP cabling.

Additional Features for A4450

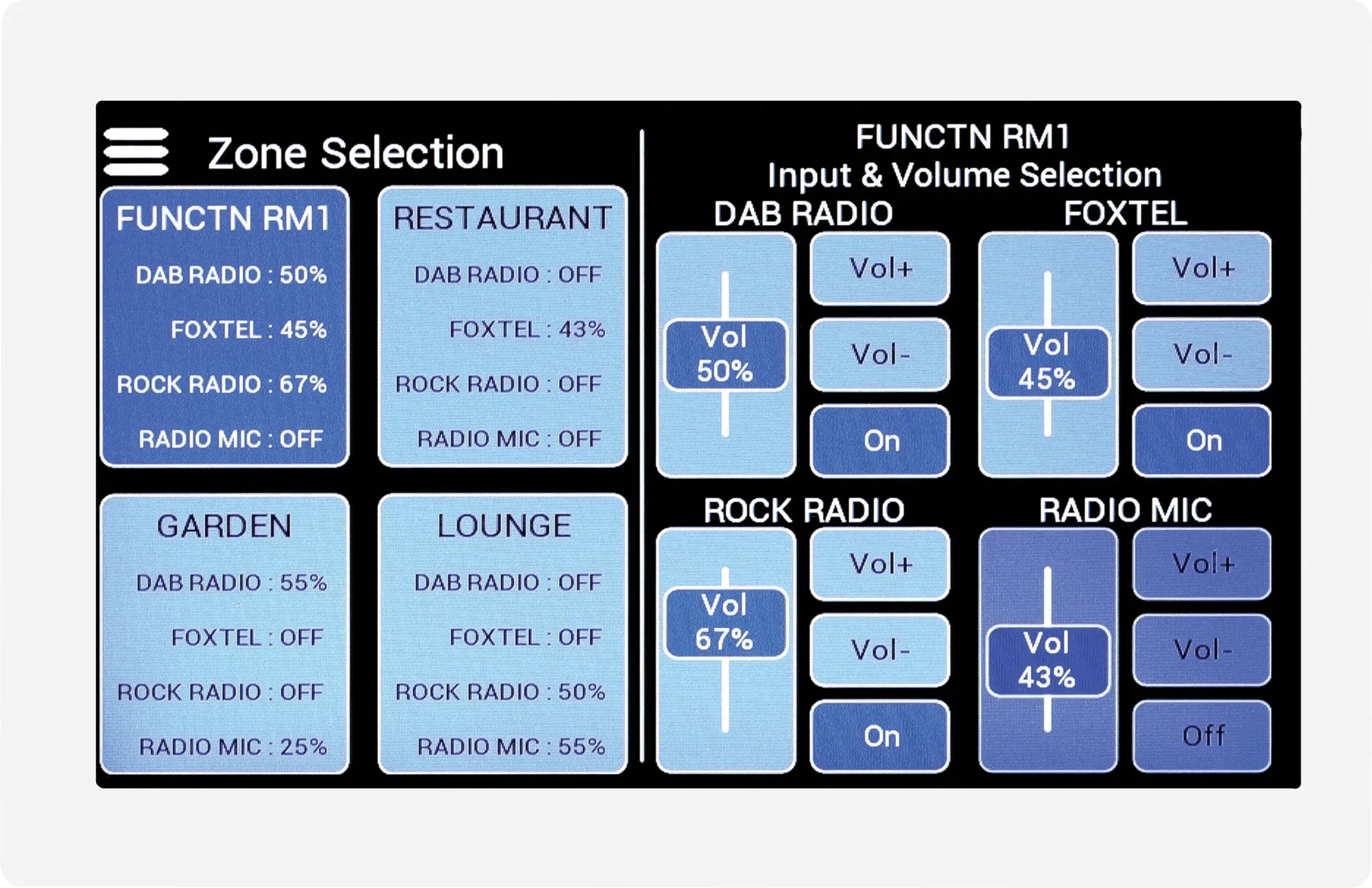

Touchscreen control of zone inputs and level control.
Custom labelling of zones and inputs.

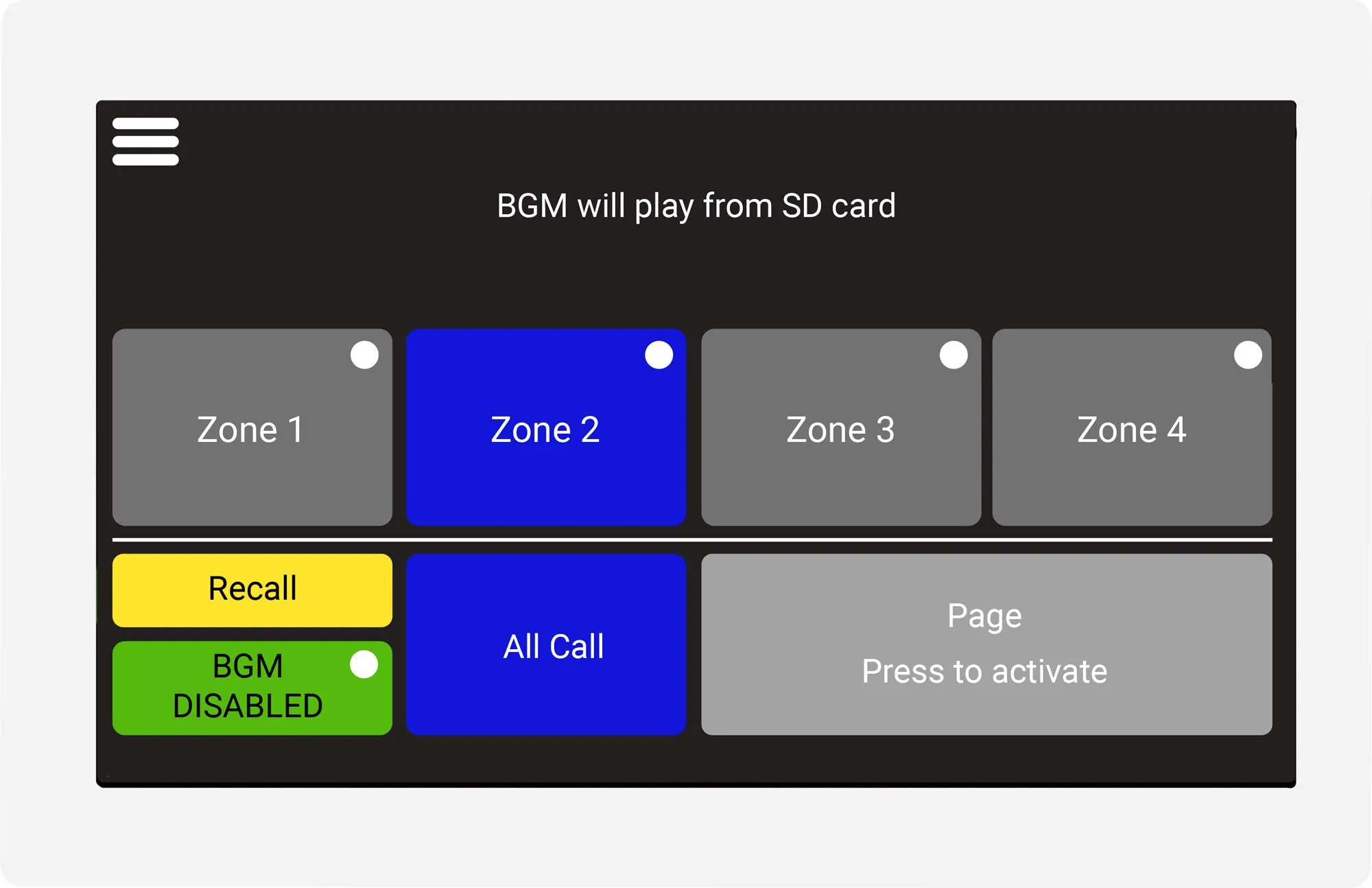

Record to, or load announcements from SD card for recall and playback.
Choose button colour theme.

Additional Features for A4580

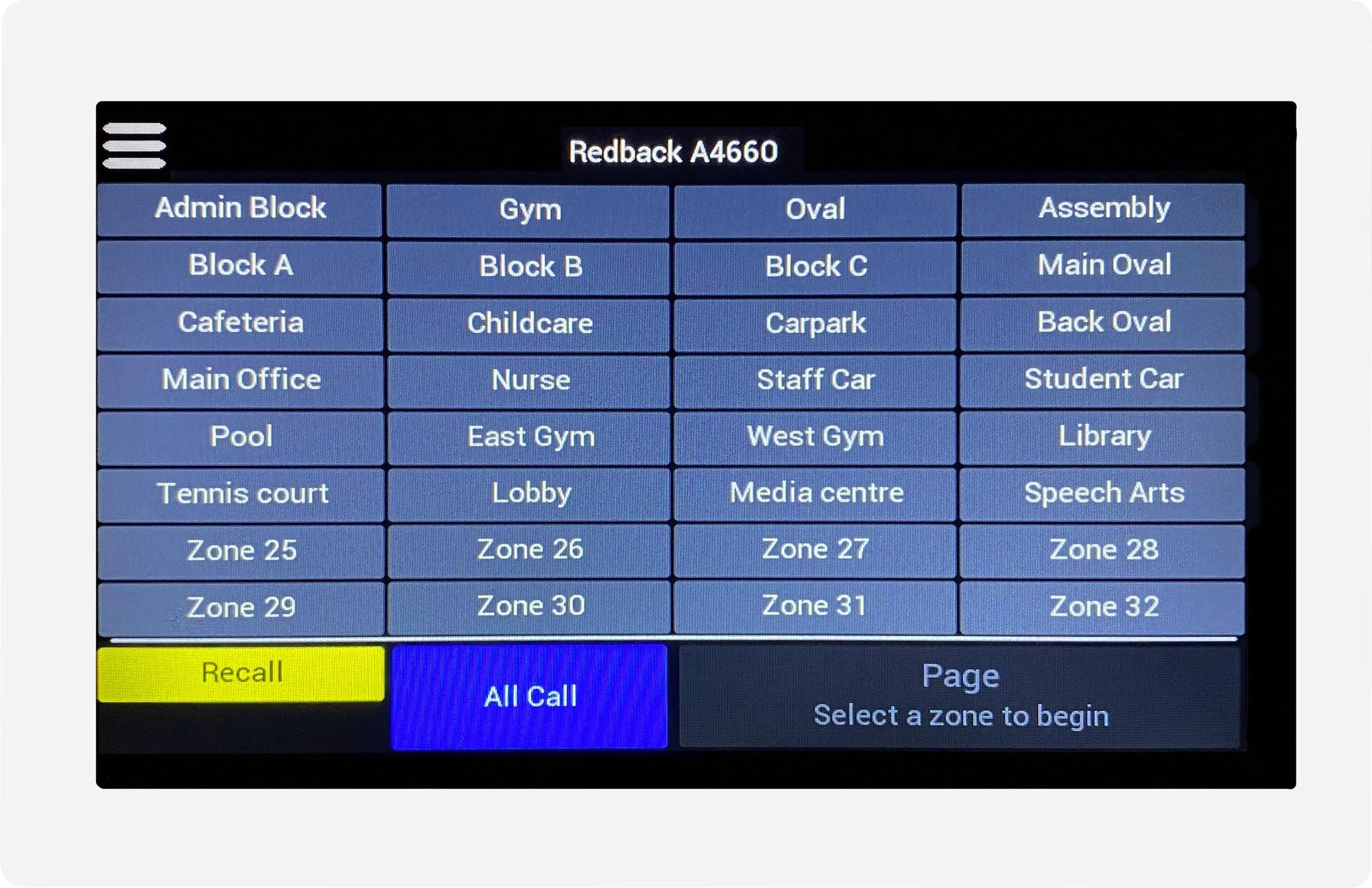

Simple touchscreen paging control of up to 32 zones(*).
All Call Paging.

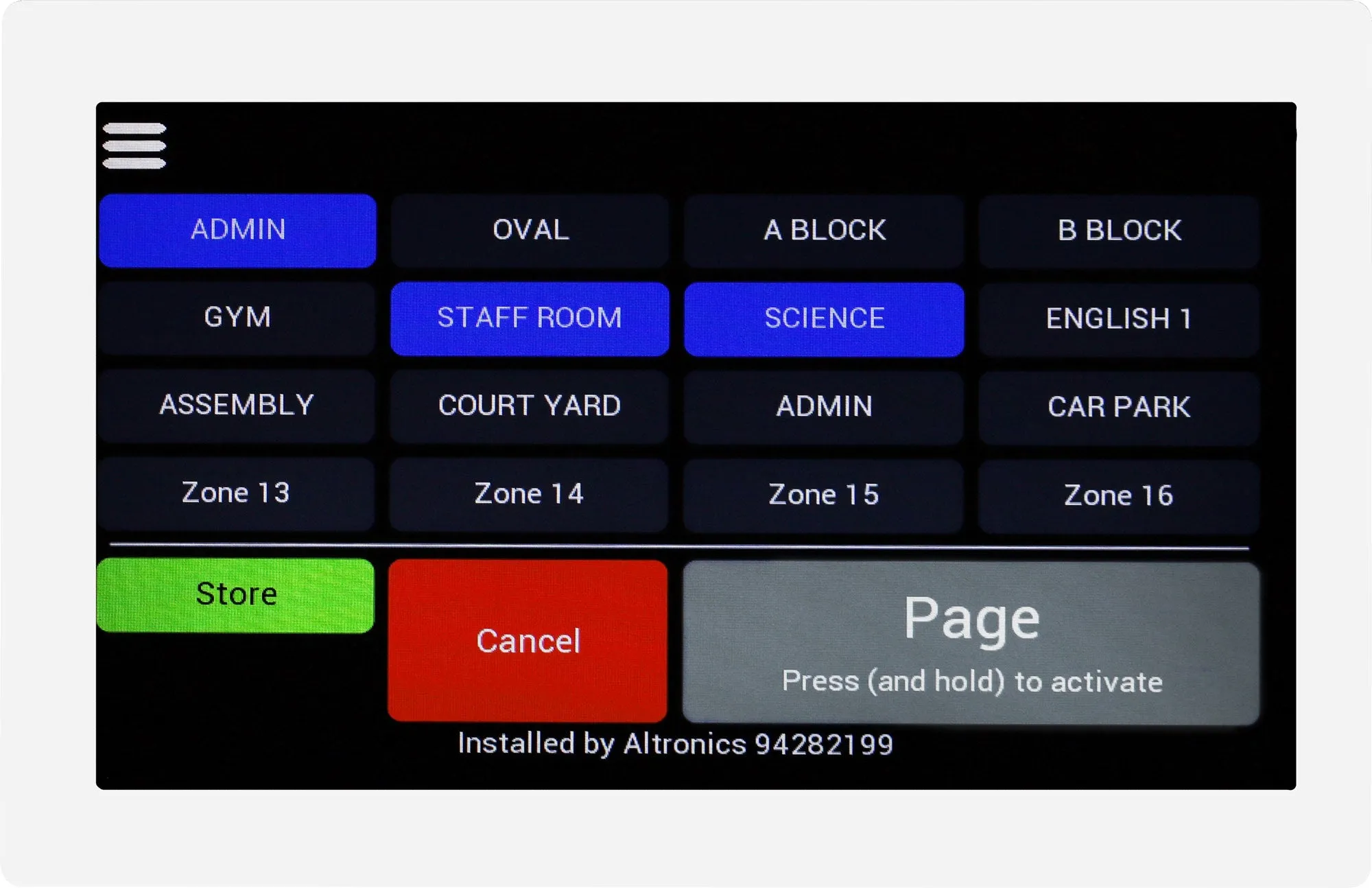

Store multiple zones to a single button for quick paging.
Adjust custom labelling of zones and installer label.
Zone lockout feature.
PTT activation available in momentary or alternate mode

Additional Features for A4487
Simple touchscreen paging control.
User configurable installer label.
PTT activation available in momentary or alternate mode.
Multiple sources for background music.

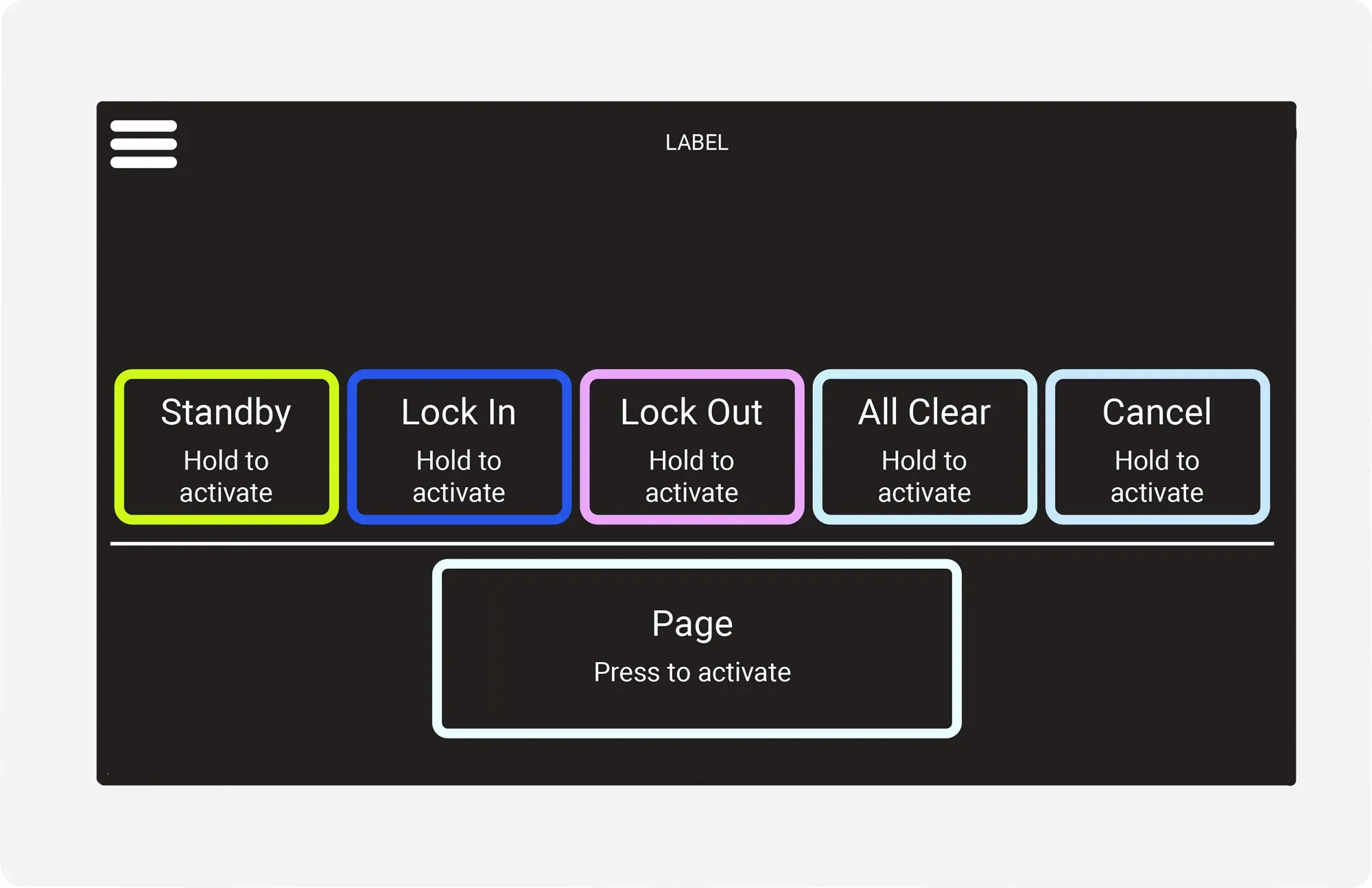

Additional Features for A4270/80, A4469 & A4489A
Simple touchscreen paging control.
All Call Paging.
Store multiple zones to a single button for quick paging.
Adjust custom labelling of zones and installer label.
Zone lockout feature.
PTT activation available in momentary or alternate mode.
Multiple sources for zone-selectable background music.

Current Firmware Product Support

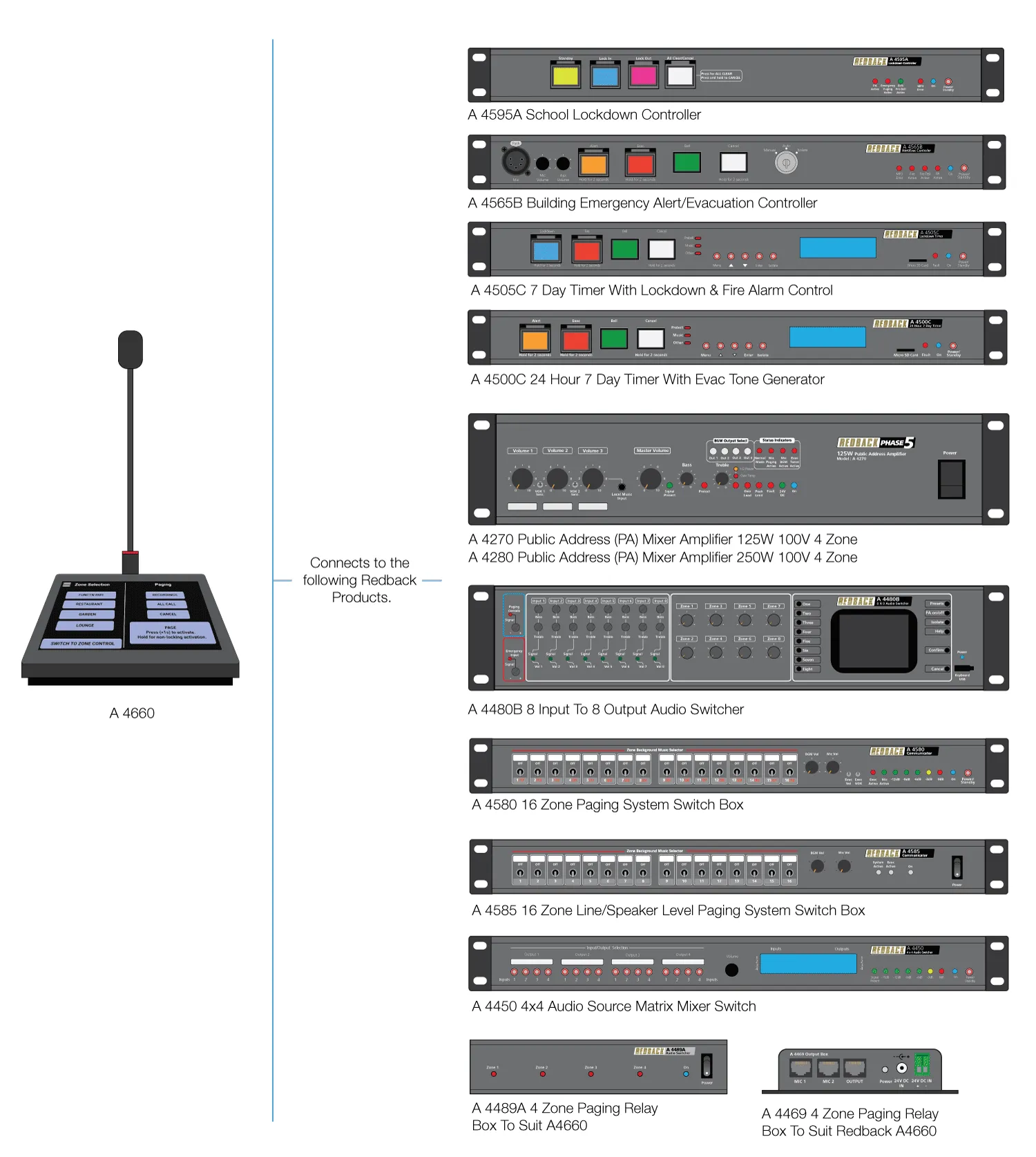

For more information on how this paging console operates with each system, see the relevant pages for the compatible Redback products listed below.

This product is currently under ongoing development and we are adding compatible products regularly. The following table displays the products which are currently compatible with the A4660 paging console, and those which are proposed for future firmware updates.
